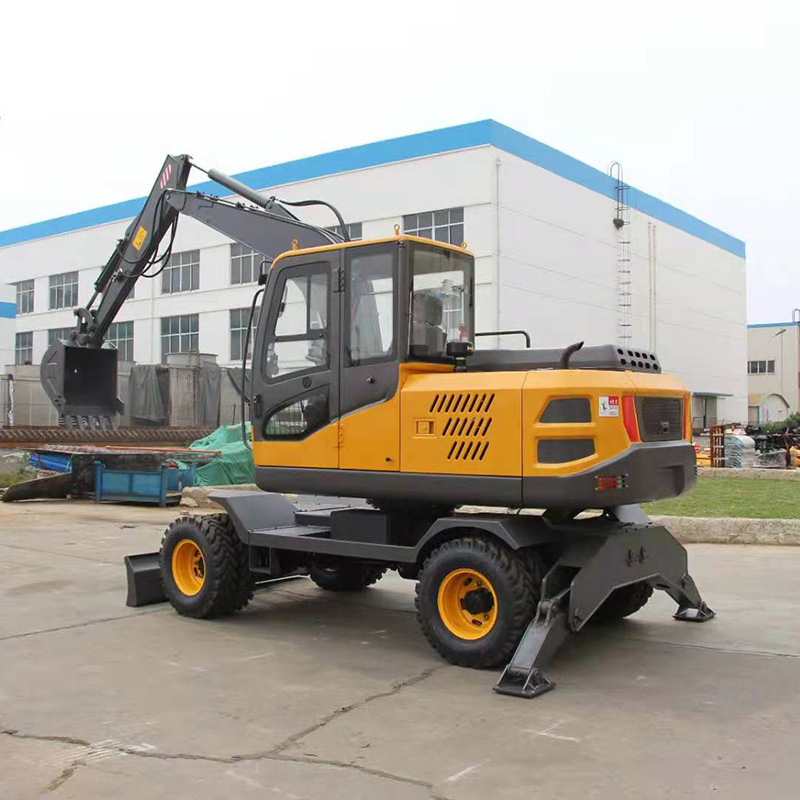

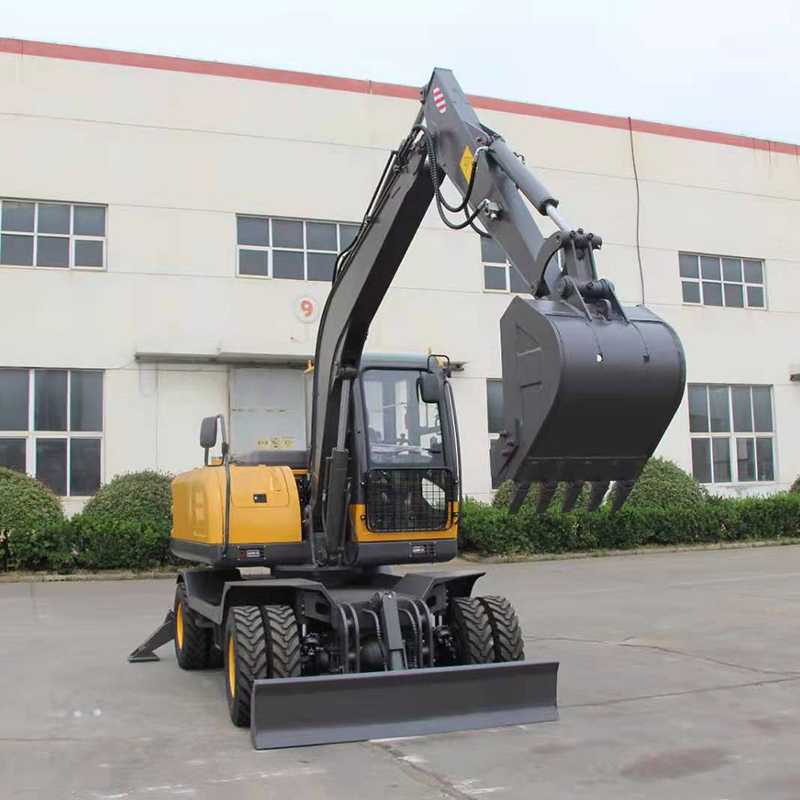

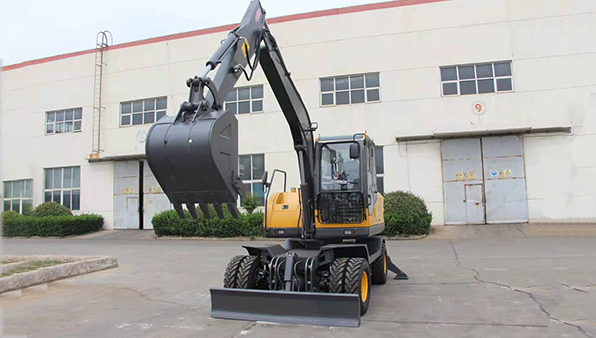

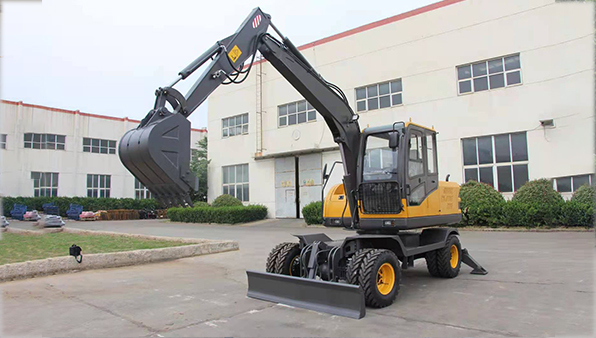

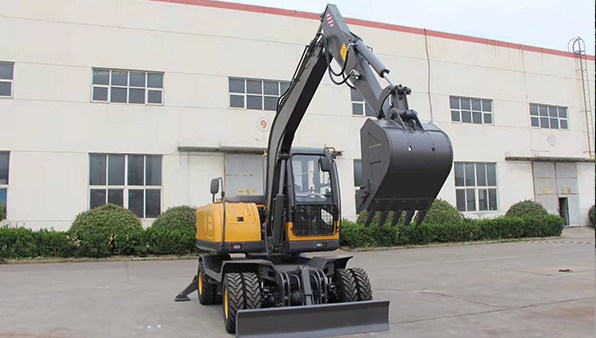

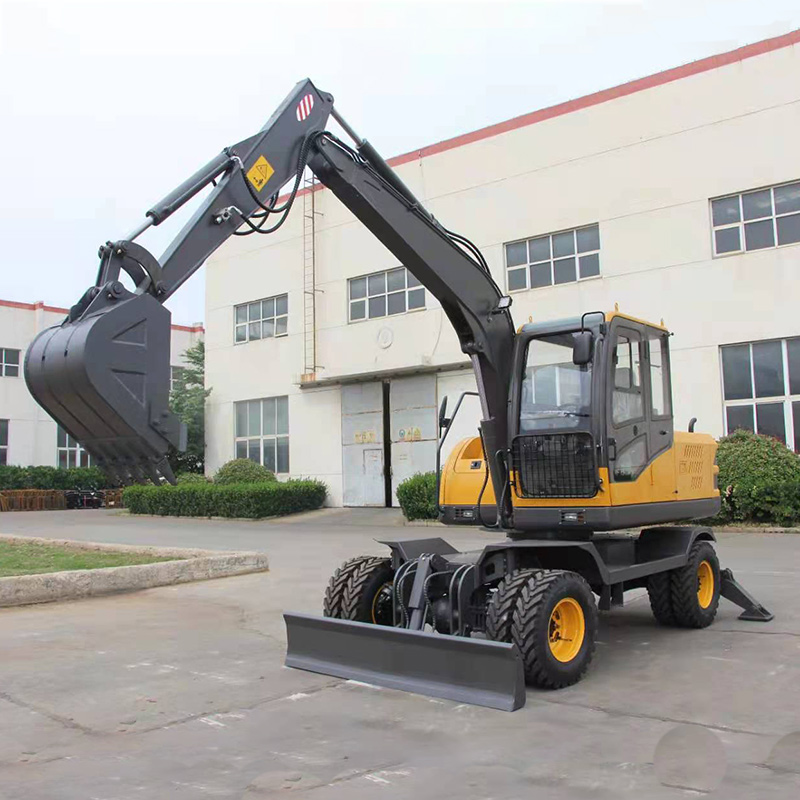

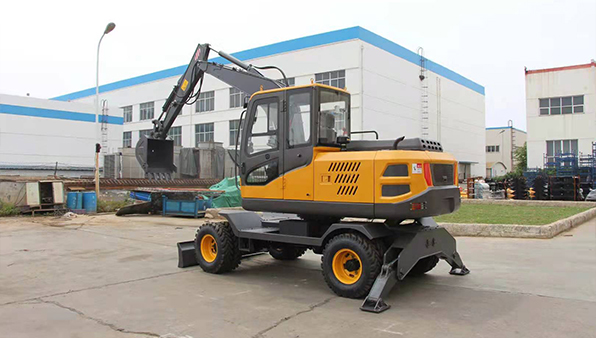

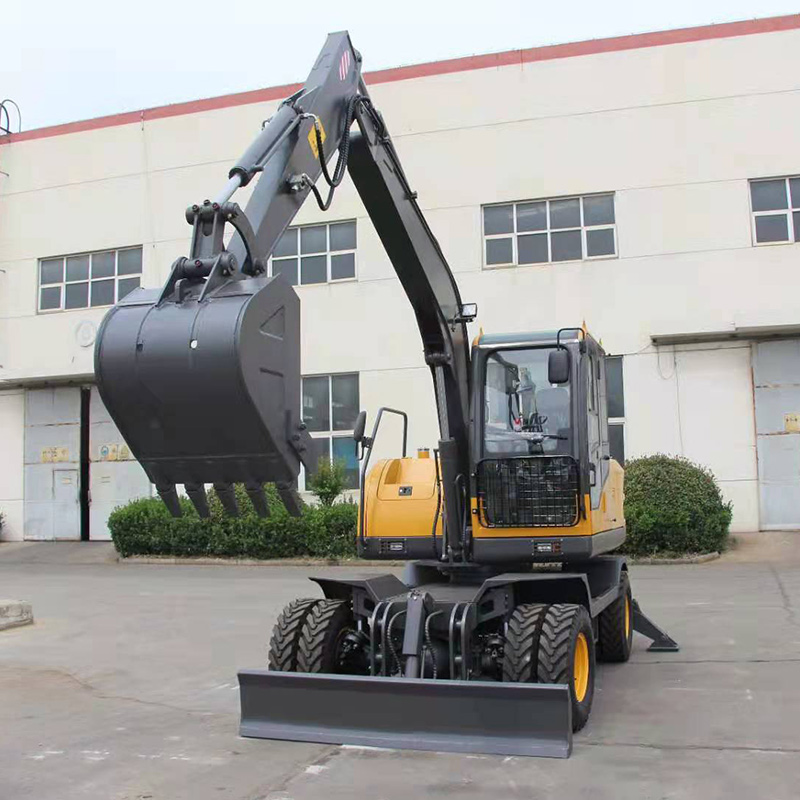

Wheel Excavator - KV90
Wheel Excavator - KV90

Wheel Excavator - KV90

The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.

Length:6410mm
Height:2835mm
Weight:7400kg
Bucket Capacity:0.30m³
Engine rated power:55/2500kw/rpm
Send Inquiry
Product Details of Wheel Excavator - KV90

Product Introduction

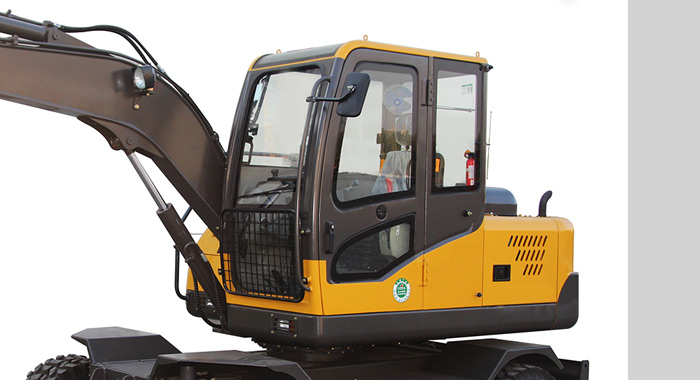

Cab

Designed according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment.

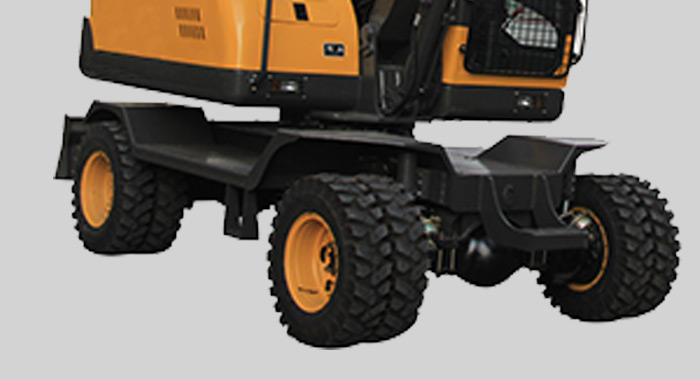

Off-road tires

Off-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain.

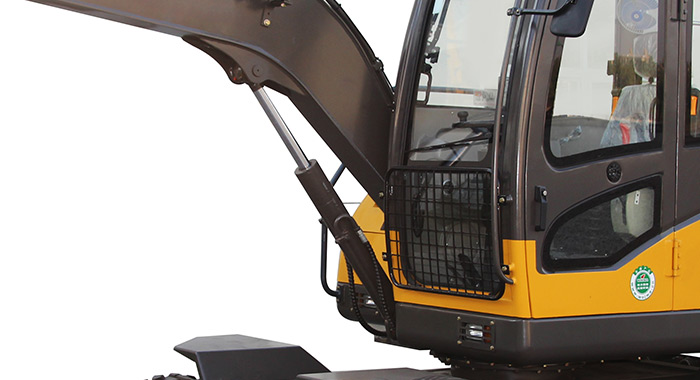

Hydraulic System

Well-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life.


Total length

6410mm

total height

2835mm

Vehicle width

2150mm

Total Weight

7400kg

hydraulic system pressure

20MPa

Maximum excavation height

6550mm

Bucket capacity

0.30m³

Maximum unloading height

4770mm

Engine maximum torque

269/1610N.m/rpm

Maximum excavation depth

3650mm

Engine power

55/2500kw/rpm

Maximum digging radius

6300mm

Wheelbase

2600mm

Boom length

3500mm

Ground clearance

318mm

Minimum radius of gyration

2084mm

Bucket digging force

46kN

Working device mode

Back Hole
