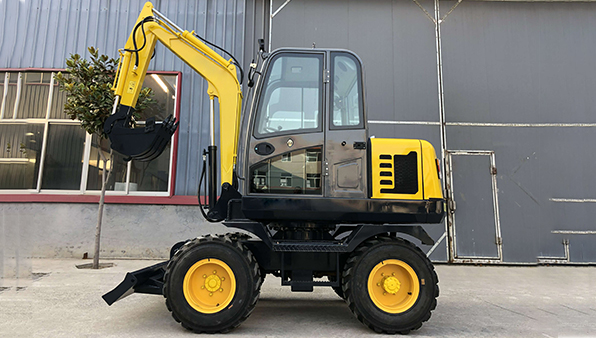

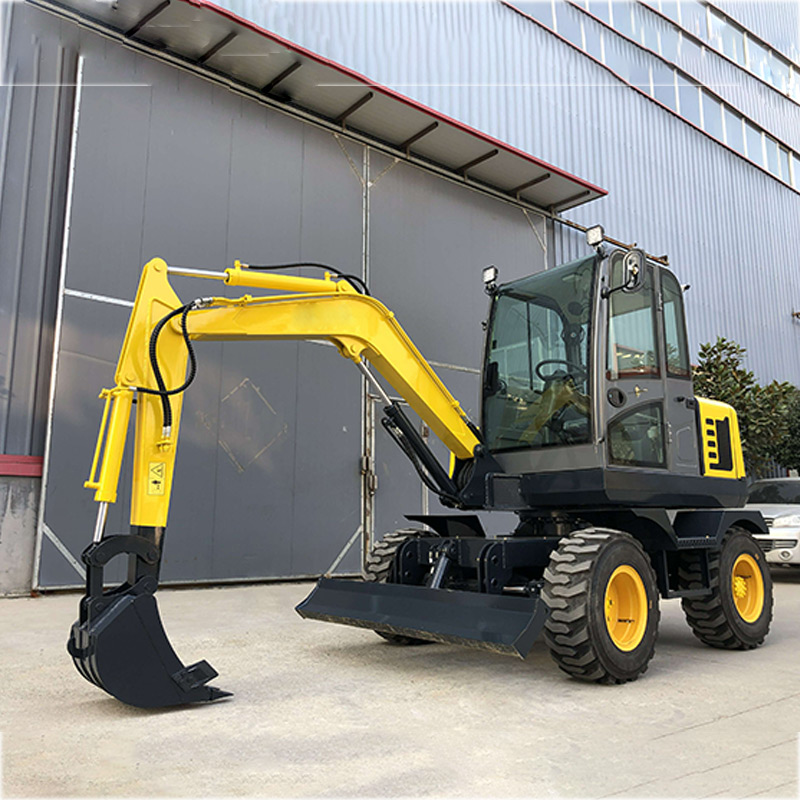

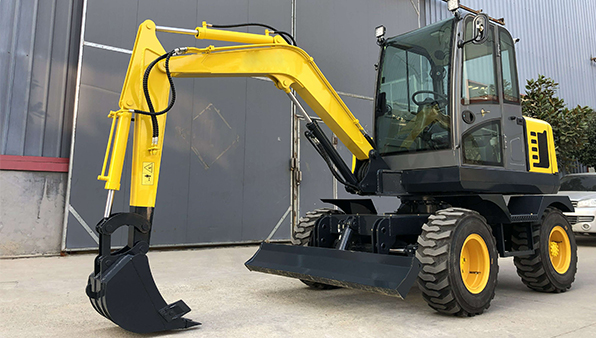

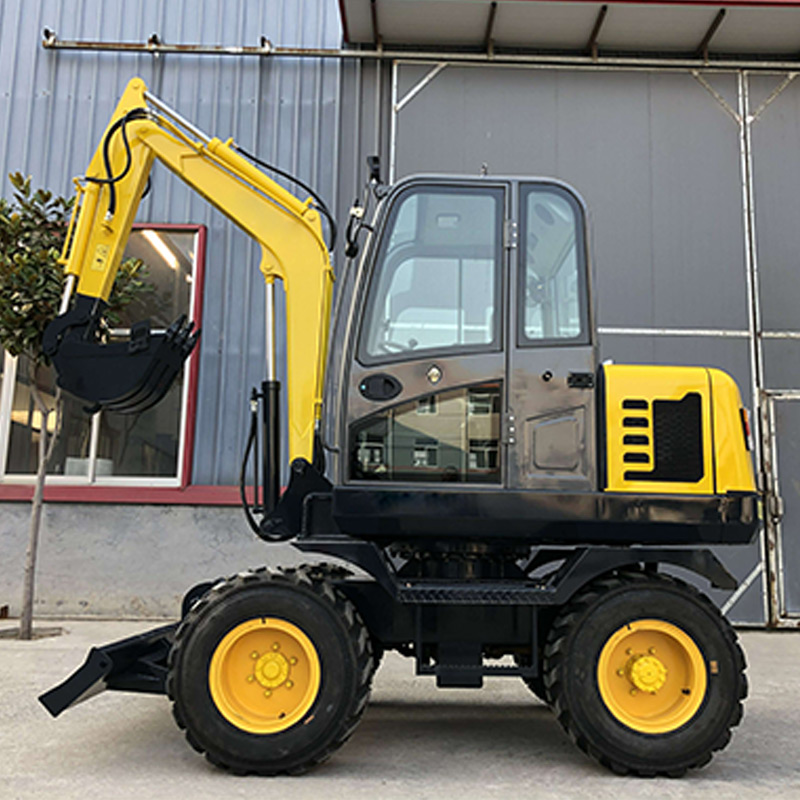

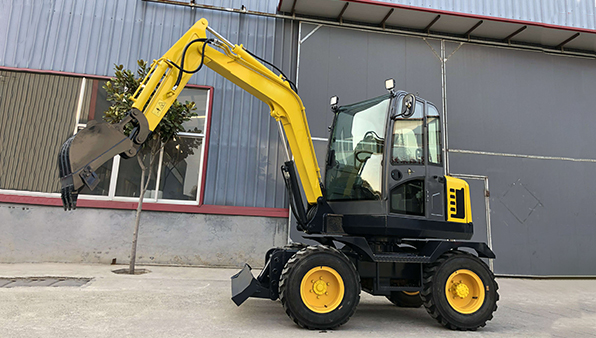

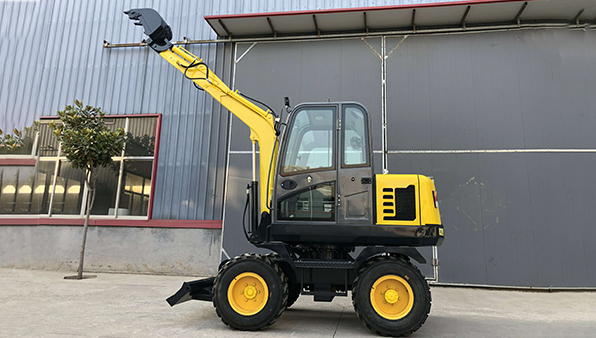

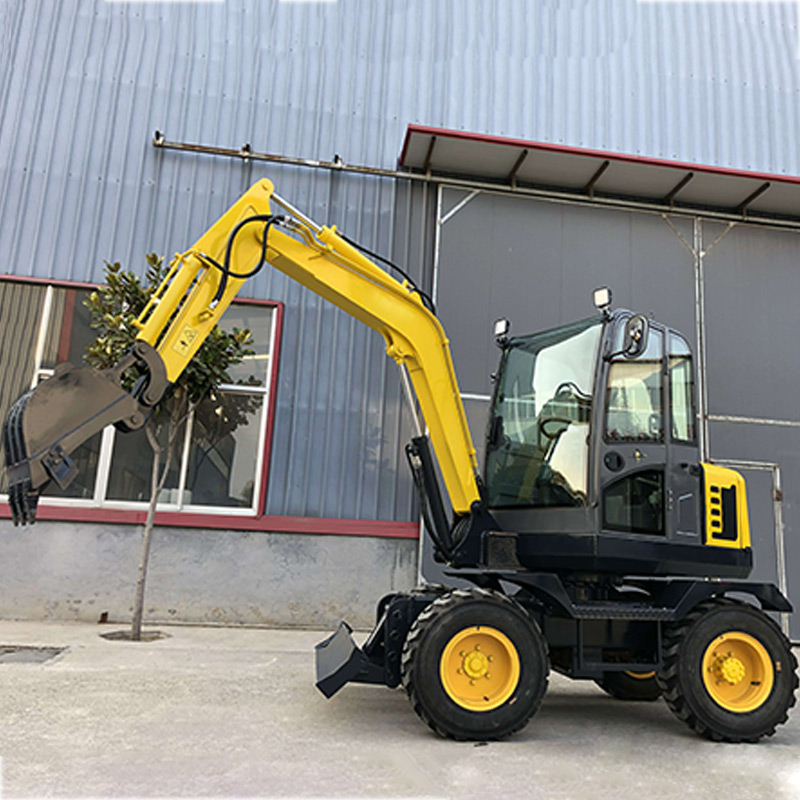

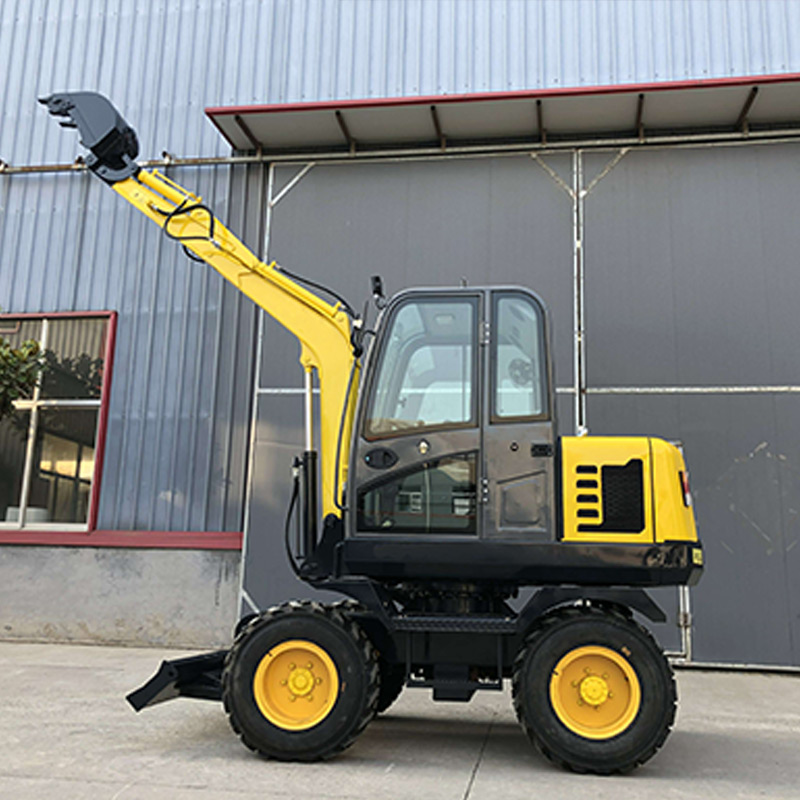

Mini Wheel Excavator - KV40
The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Height：2700mm
Weight：4000kg
Bucket Capacity：0.10m³
Engine Speed：2200r/min
Send Inquiry
Product Details of Mini Wheel Excavator - KV40
Product Introduction
 |
 |  |
 |  |

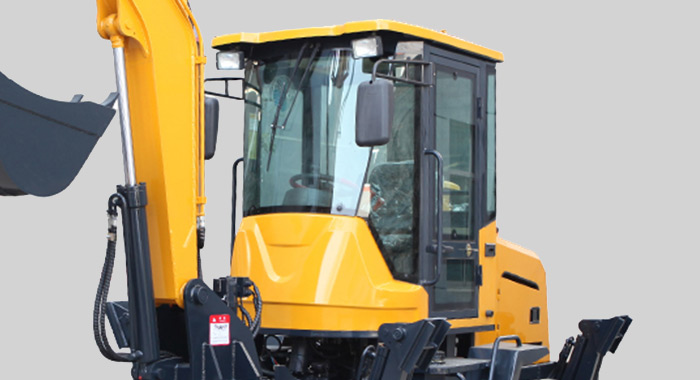

CabDesigned according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment. |  |

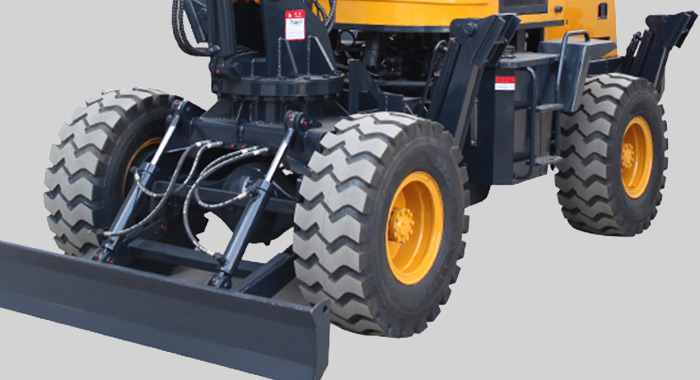

 | Off-road tiresOff-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain. |

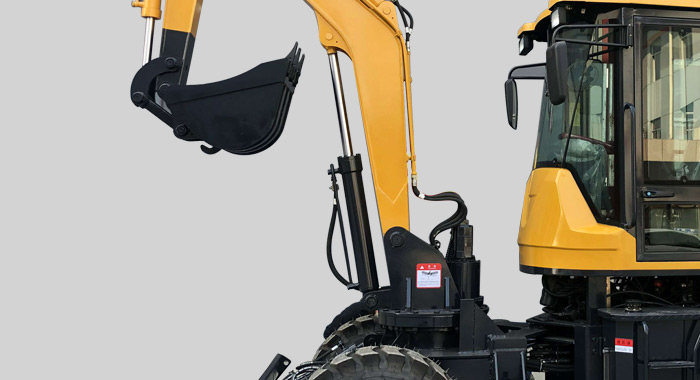

Hydraulic SystemWell-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life. |  |
Total length | 3600mm | total height | 2700mm | Vehicle width | 1860mm |
Total Weight | 4000kg | hydraulic system pressure | 19MPa | Maximum excavation height | 4500mm |
Bucket capacity | 0.10m³ | Maximum unloading height | 2800mm | Engine speed | 2200r/min |
Maximum excavation depth | 2400mm | engine power | 36.8kw/50 | Maximum digging radius | 4400mm |
wheelbase | 1570mm | Maximum horizontal digging distance | 3700mm | Boom end height | 1320mm |
Minimum radius of gyration | 1900mm | ground pressure | 23×103N/m³ | Maximum digging height radius | 2200mm |
