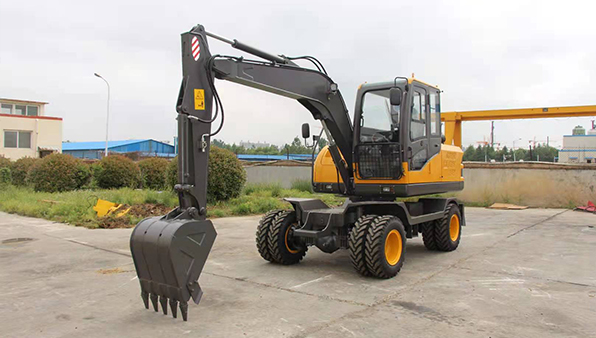

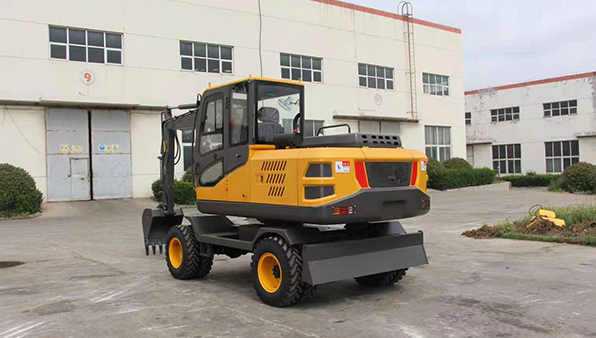

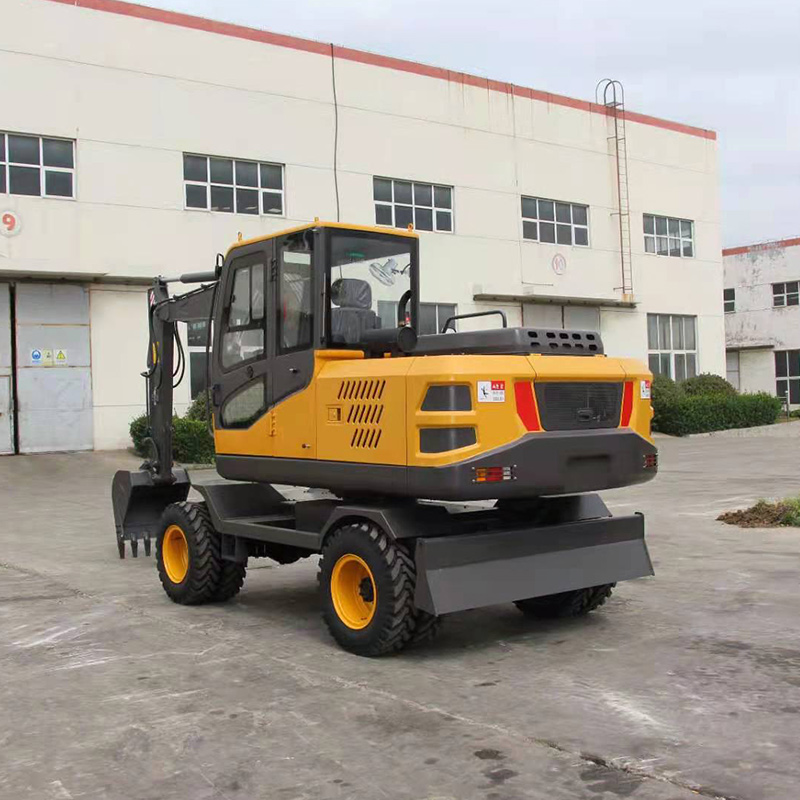

Wheel Excavator - KV80
The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Height：2827mm
Weight：6600kg
Bucket Capacity：0.30m³
Engine rated power：55/2500kw/rpm
Send Inquiry
Product Details of Wheel Excavator - KV80
Product Introduction
 |
 |  |
 |  |

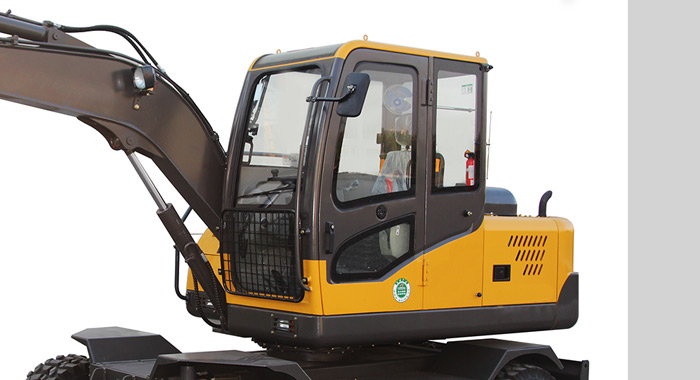

CabDesigned according to the principles of engineering, the concept of comfort, wide vision, spacious and bright, user-friendly front gear mechanism, equipped with adjustable suspension seats, silicone oil shock absorption, comfortable driving environment. |  |

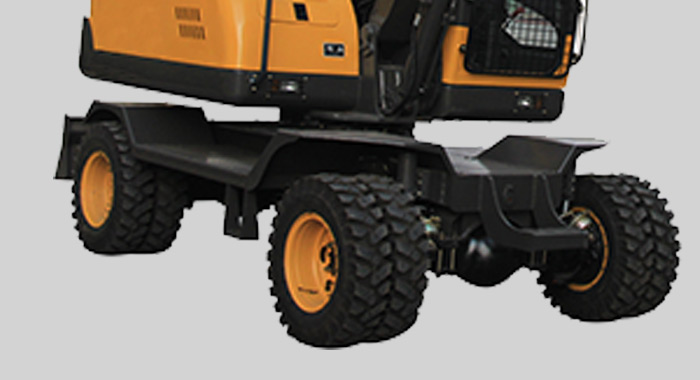

 | Off-road tiresOff-road anti-skid tires, with deeper texture, strong grip, not afraid of terrain. |

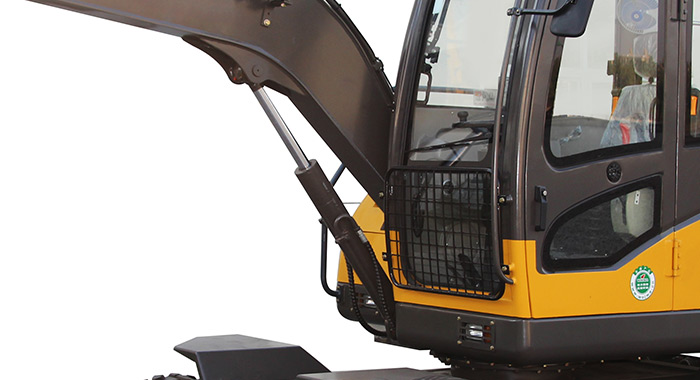

Hydraulic SystemWell-known brand multi-way valve and advanced rotary reducer, fast action, sufficient strength, good coordination of compound action, high reliability and long service life. |  |
Total length | 6380mm | total height | 2827mm | Vehicle width | 2150mm |
Total Weight | 6600kg | hydraulic system pressure | 20MPa | Maximum excavation height | 6300mm |
Bucket capacity | 0.30m³ | Maximum unloading height | 4750mm | Engine maximum torque | 269/1610N.m/rpm |
Maximum excavation depth | 3500mm | Engine power | 55/2500kw/rpm | Maximum digging radius | 6230mm |
Wheelbase | 2400mm | Boom length | 3260mm | Ground clearance | 217mm |
Minimum radius of gyration | 2084mm | Bucket digging force | 46kN | Working device mode | Back Hole |
