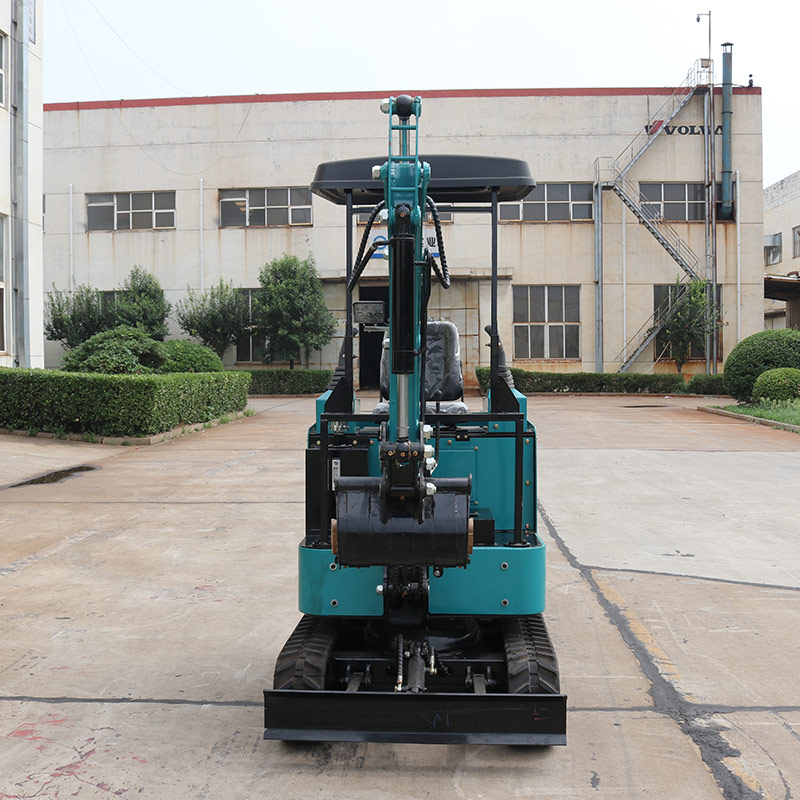

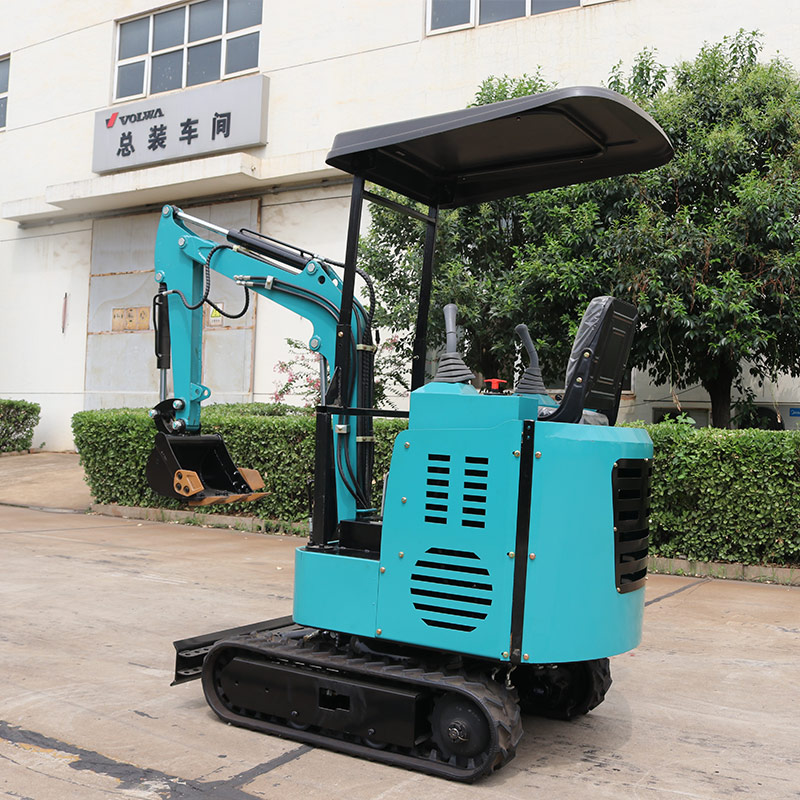

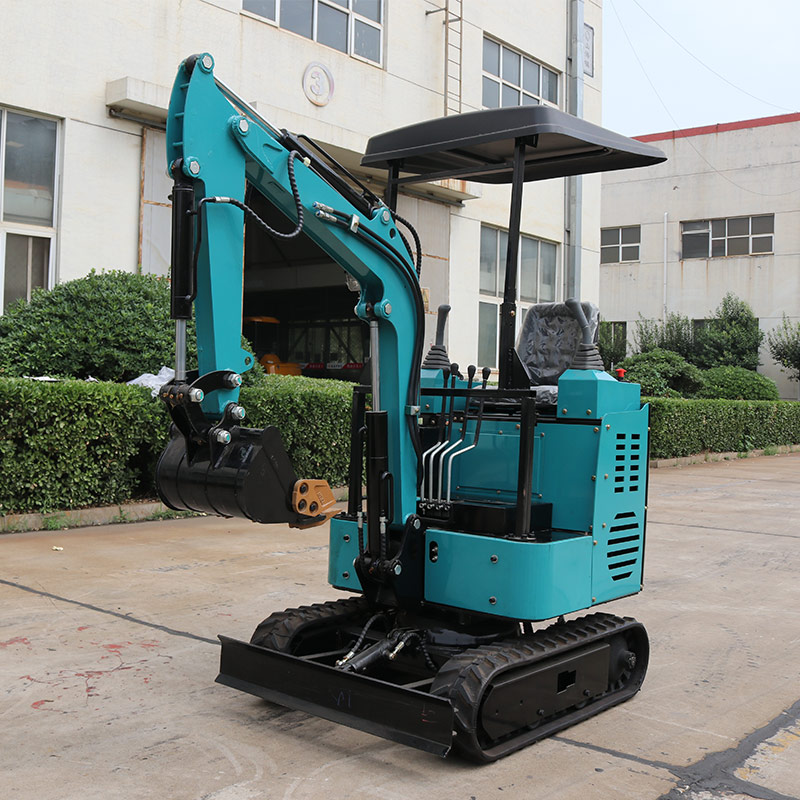

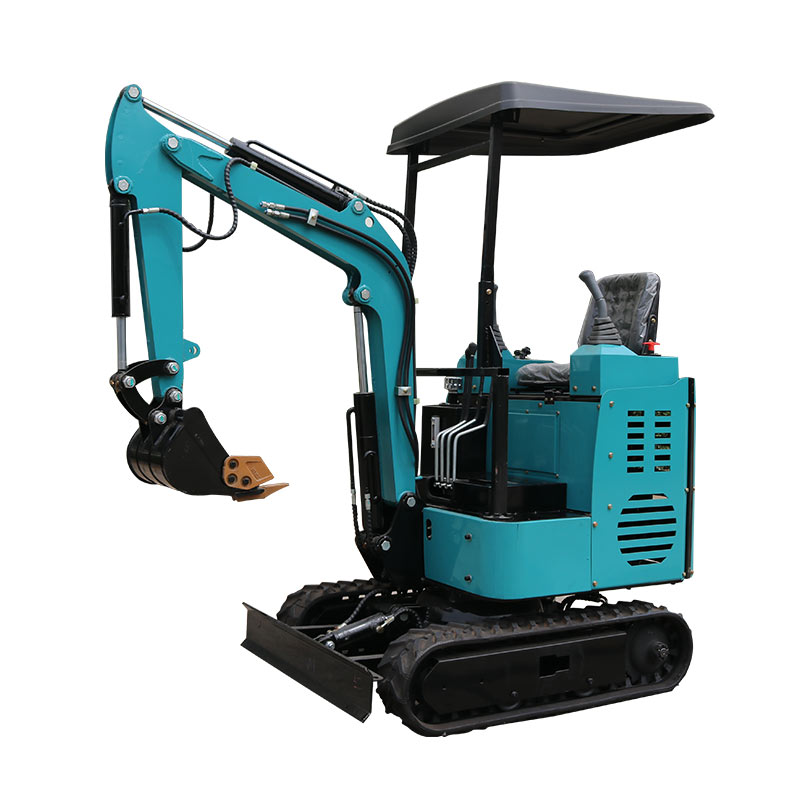

Mini Excavator-KV15B

The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.

Engine：KOOP292F OR Changchai water-cooled
Power:14kw
Weight:1050kg
Total Size(L*W*H)： 2300*1000*2200mm
Digging height：2490mm

Send Inquiry

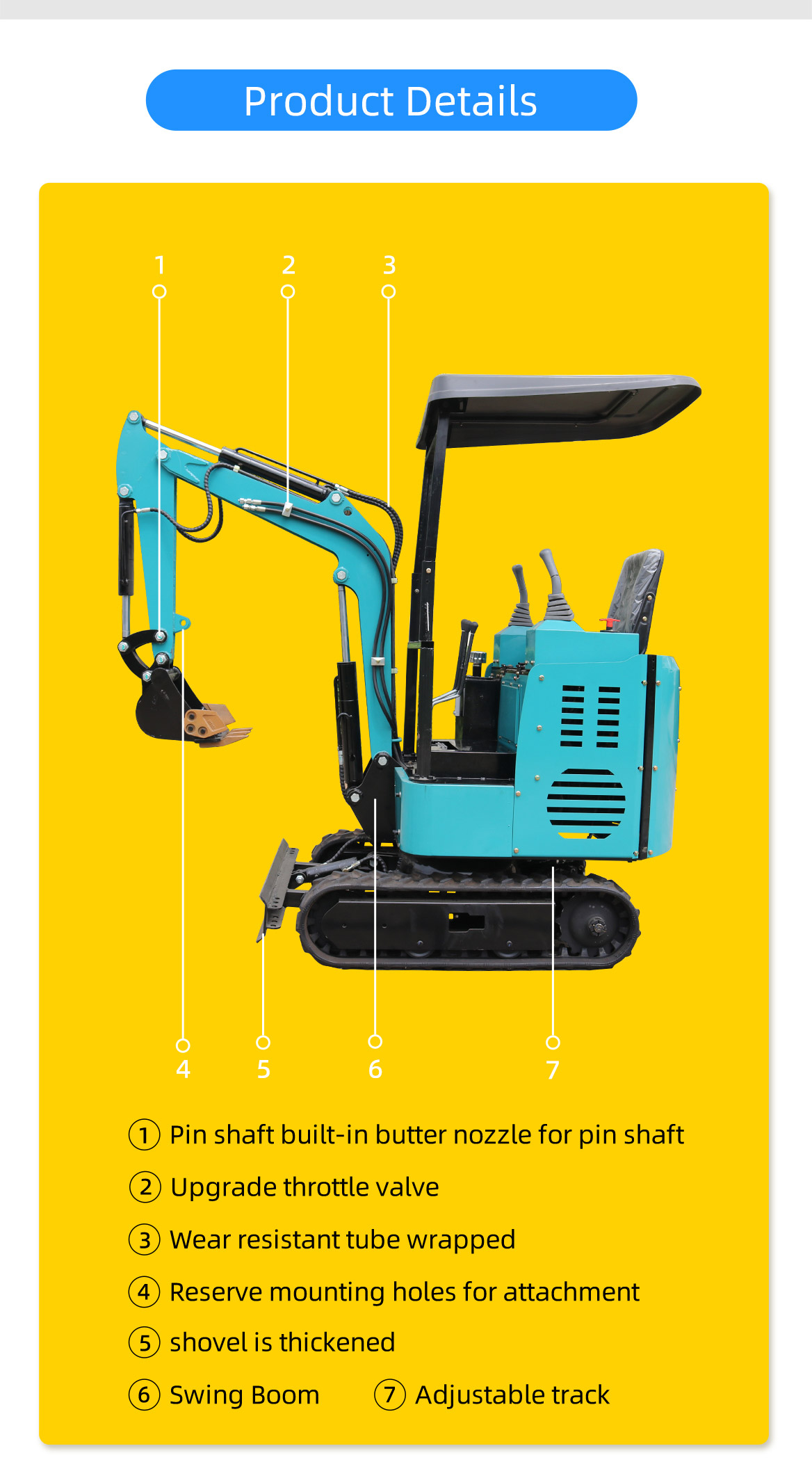

Product Details of Mini Excavator-KV15B

Product Introduction

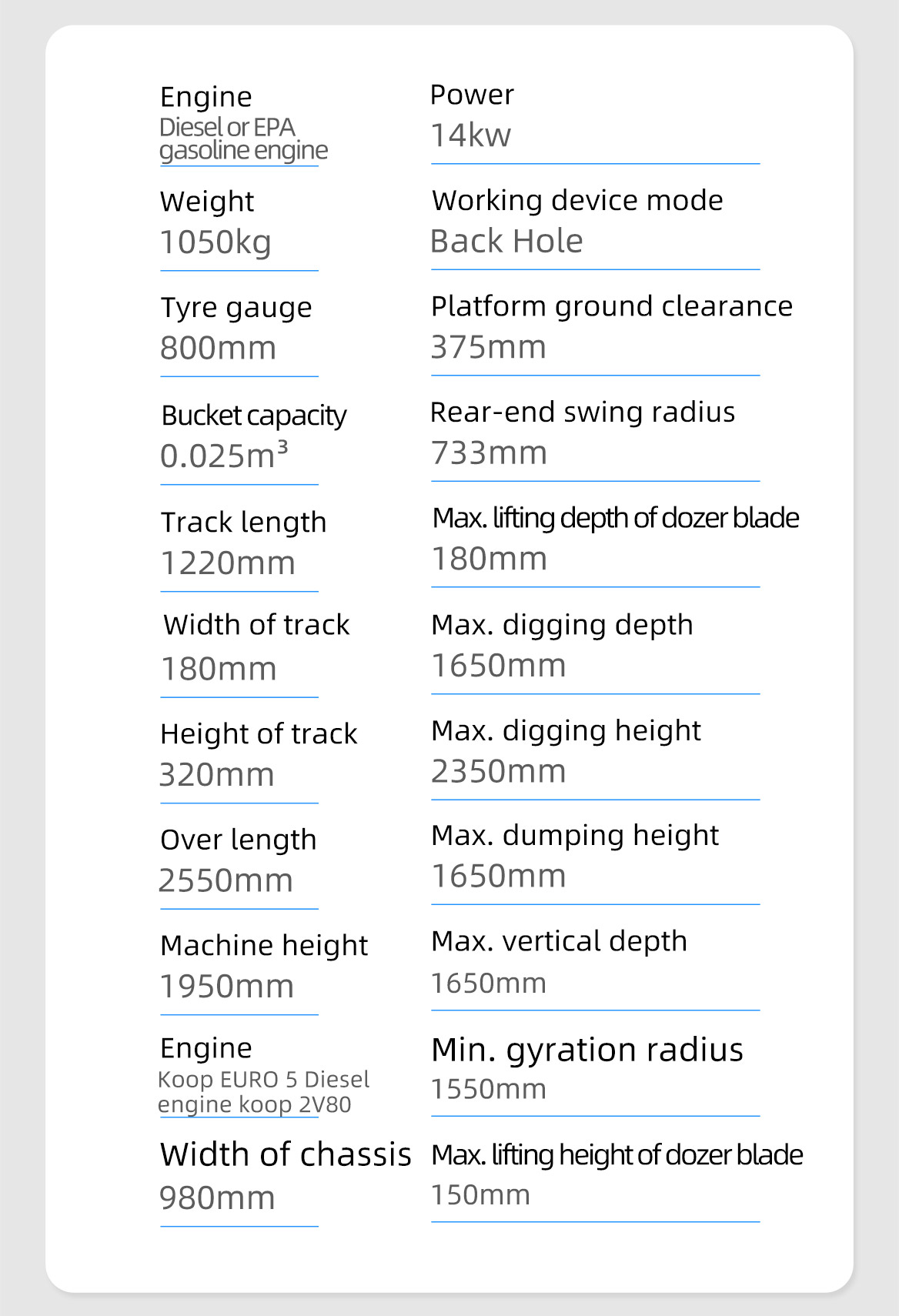

Engine	Diesel or EPA gasoline engine	Weight	1050kg	Bucket capacity	0.025m³
Working device mode	Back Hole	Power	14kw	Tyre gauge	800mm
Track length	1220mm	Platform ground clearance	375mm	Rear-end swing radius	733mm
Width of chassis	980mm	Width of track	180mm	Height of track	320mm
Over length	2550mm	Machine height	1950mm	Max. digging radius	2900mm
Max. digging depth	1650mm	Max. digging height	2350mm	Max. dumping height	1650mm
Max. vertical depth	1650mm	Min. gyration radius	1550mm	Max. lifting height of dozer blade	150mm
Max. lifting depth of dozer blade	180mm	Engine	Koop EURO 5 Diesel engine koop 2V80
