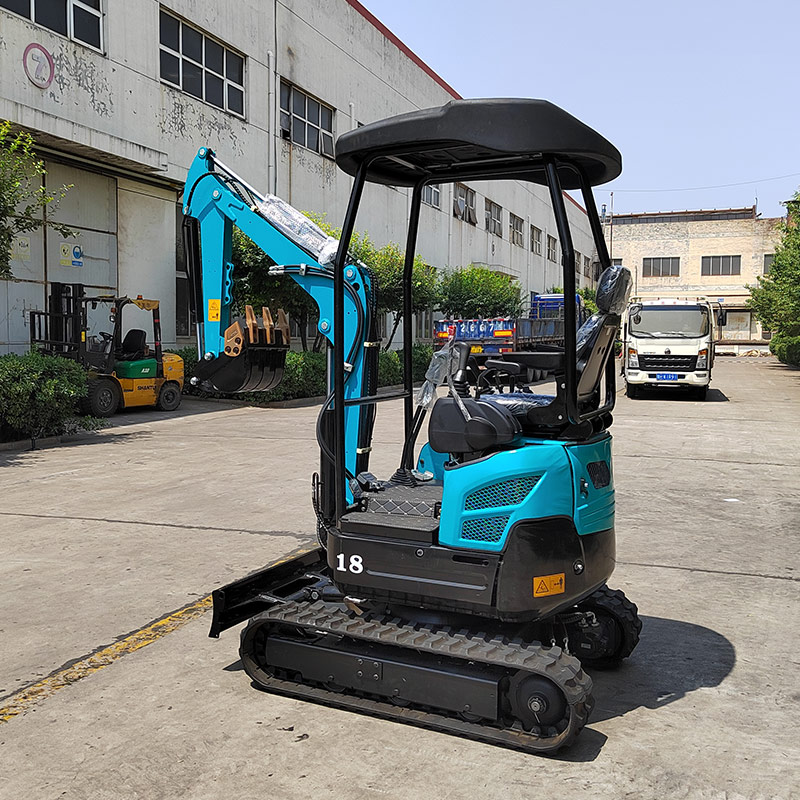

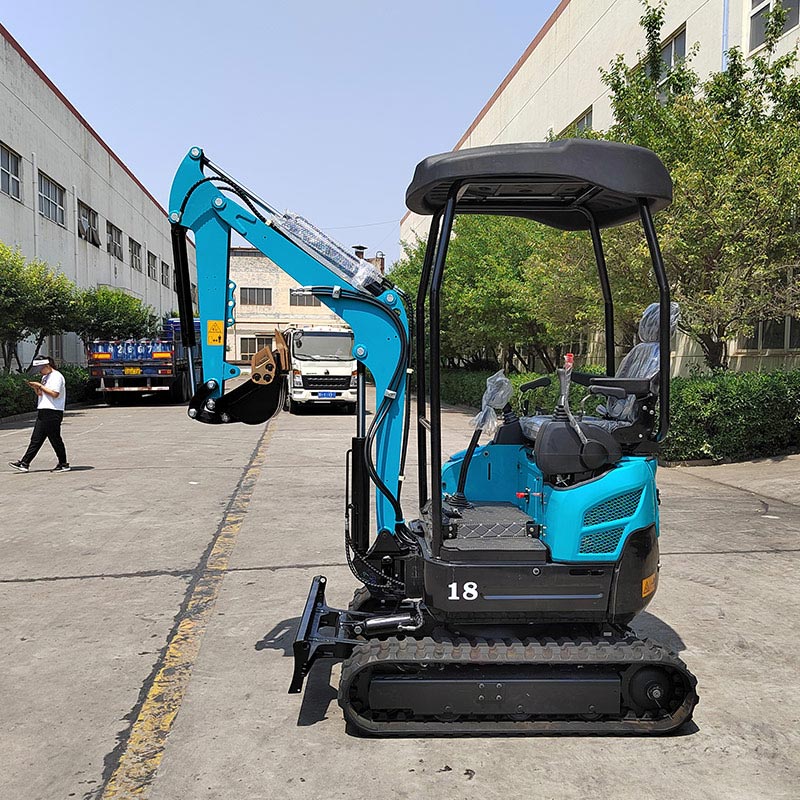

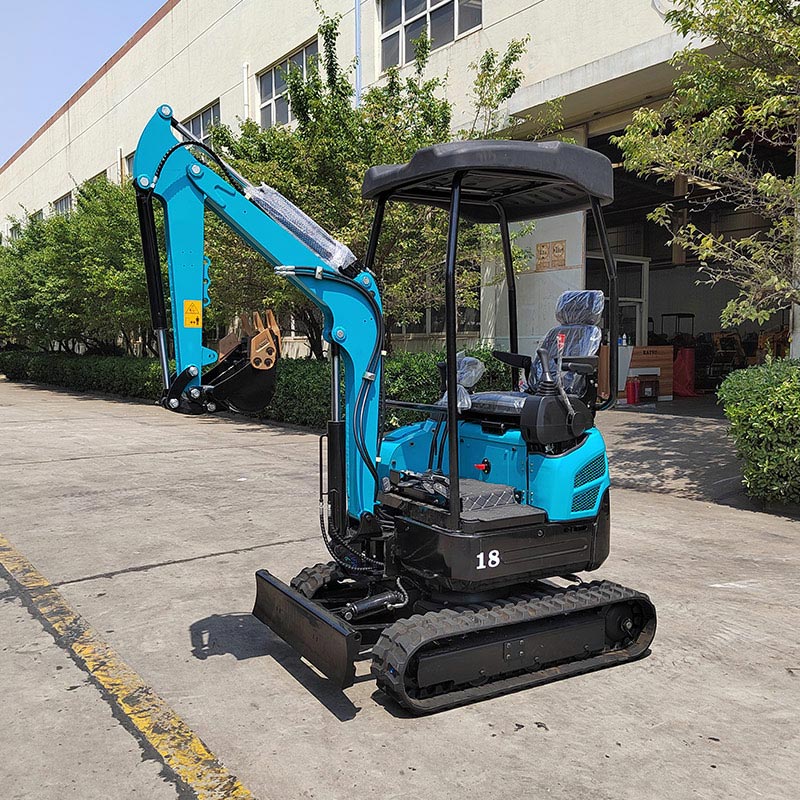

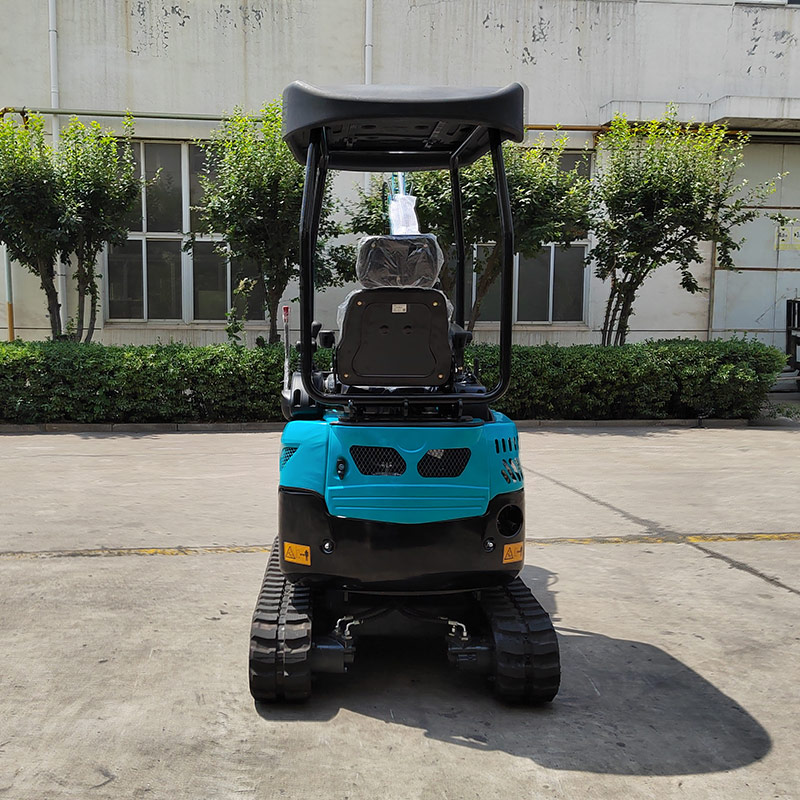

Mini Excavator-KV18 Plus
The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Power:10.4kw/15hp
Weight:1500kg
Total Size(L*W*H):2400*1100*2200mm
Digging depth:1850mm
Product Introduction

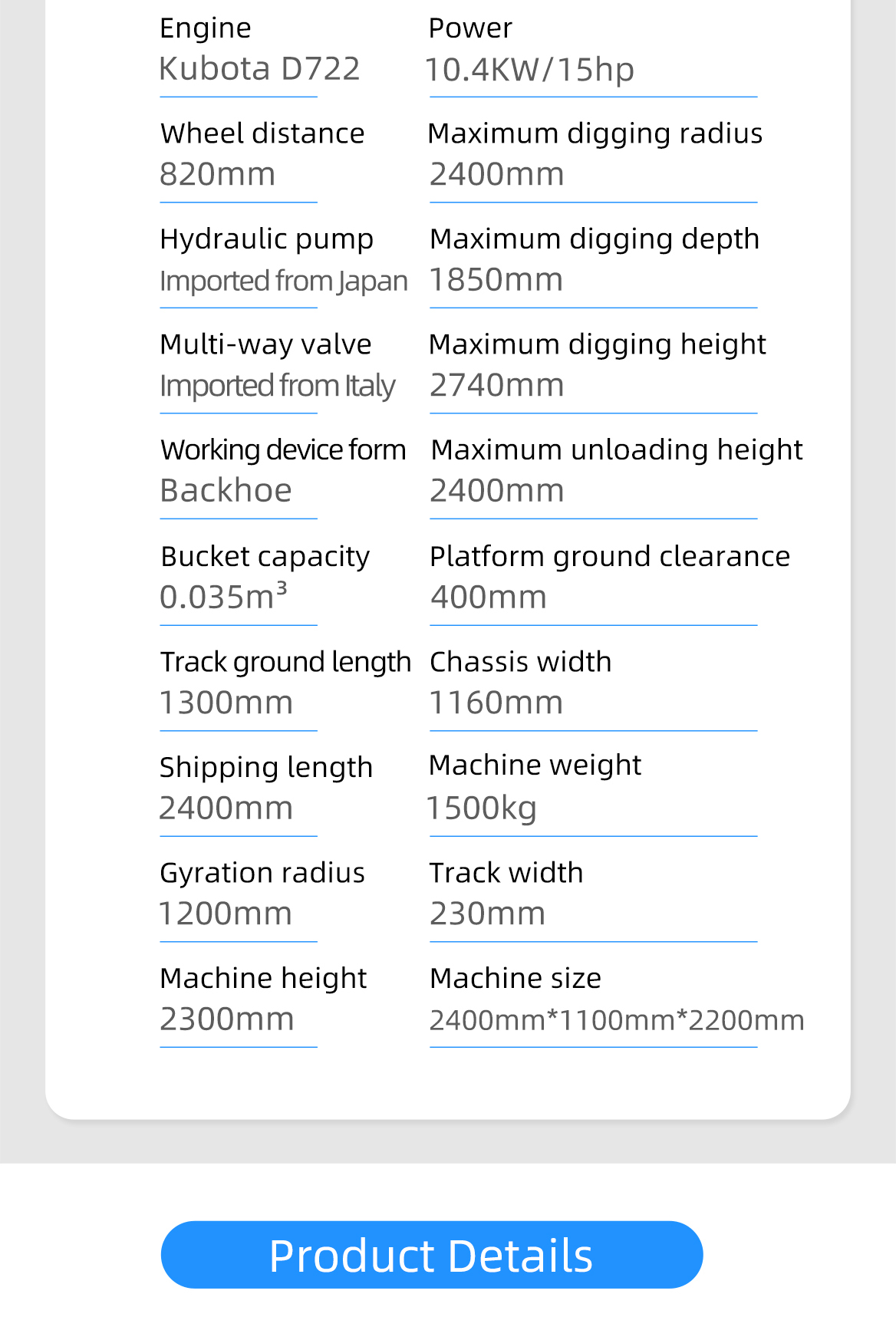

Weight | 1500kg | wheelbase | 820mm | Standard Bucket Capacity | 0.035m³ |
Track ground length | 1300mm | Working device form | backhoe | Platform ground clearance | 400mm |
power | 20KW/15hp | Chassis width | 1180mm | Maximum digging radius | 2400mm |
Track width | 230mm | Maximum excavation depth | 1850mm | Shipping length | 2400mm |
Maximum excavation height | 2740mm | full vehicle height | 2300mm | Maximum unloading height | 2400mm |
Radius of gyration | 1200mm | Hydraulic pump | Imported from Japan | Multi-way valve | Imported from Italy |
