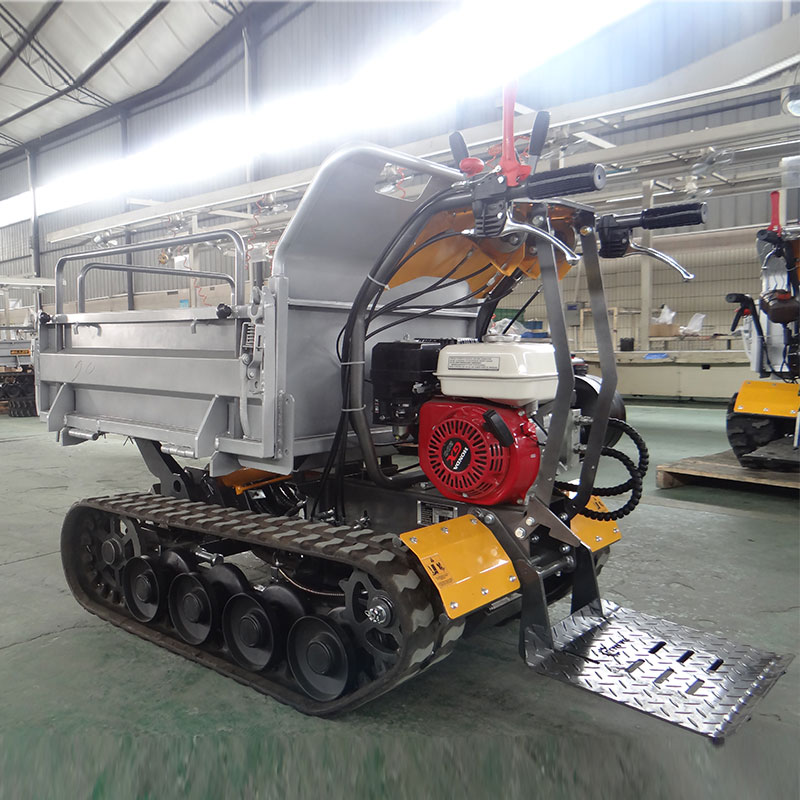

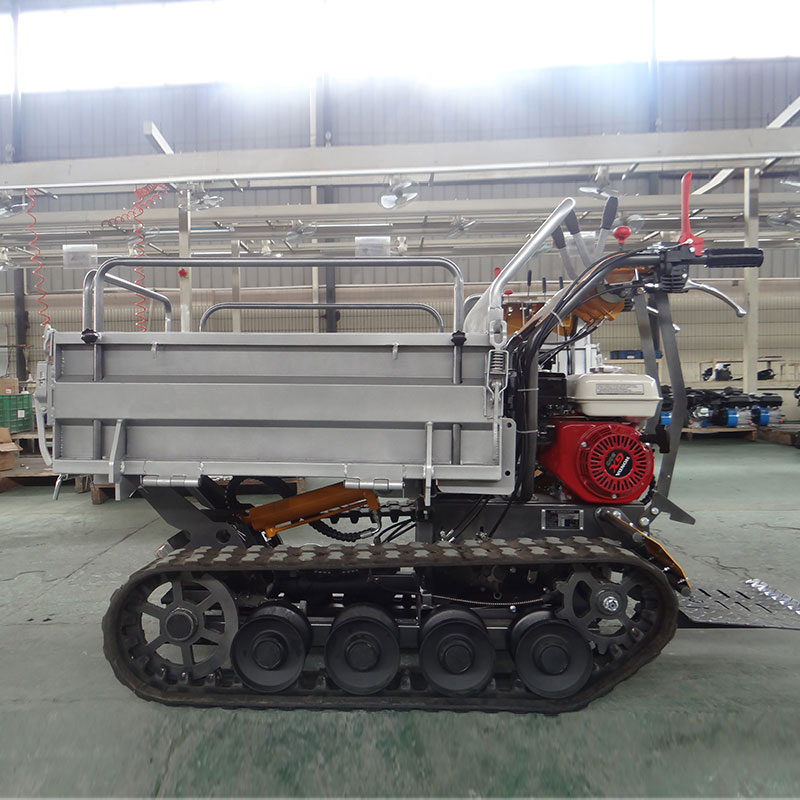

Mini Crawler Dumper-LG500B
The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.
Max Loading Weight ：500kg
Machine Size(L*W*H)：1730x900x1110mm
Rated Power：4.2 kw / 3600 rpm
Climbing Ability：20°
Send Inquiry
Product Details of Mini Crawler Dumper-LG500B
Product Introduction

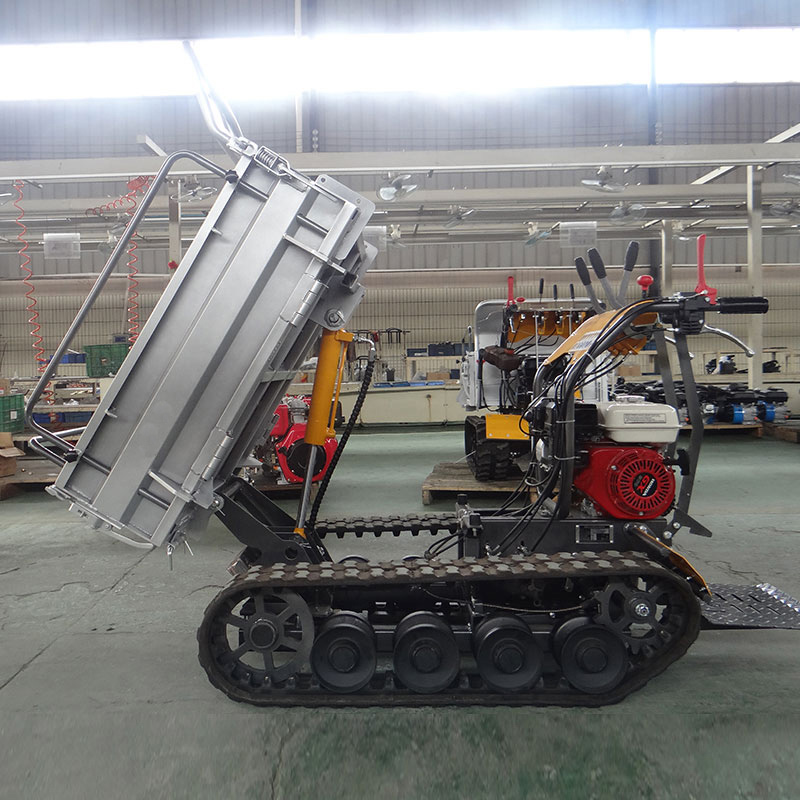

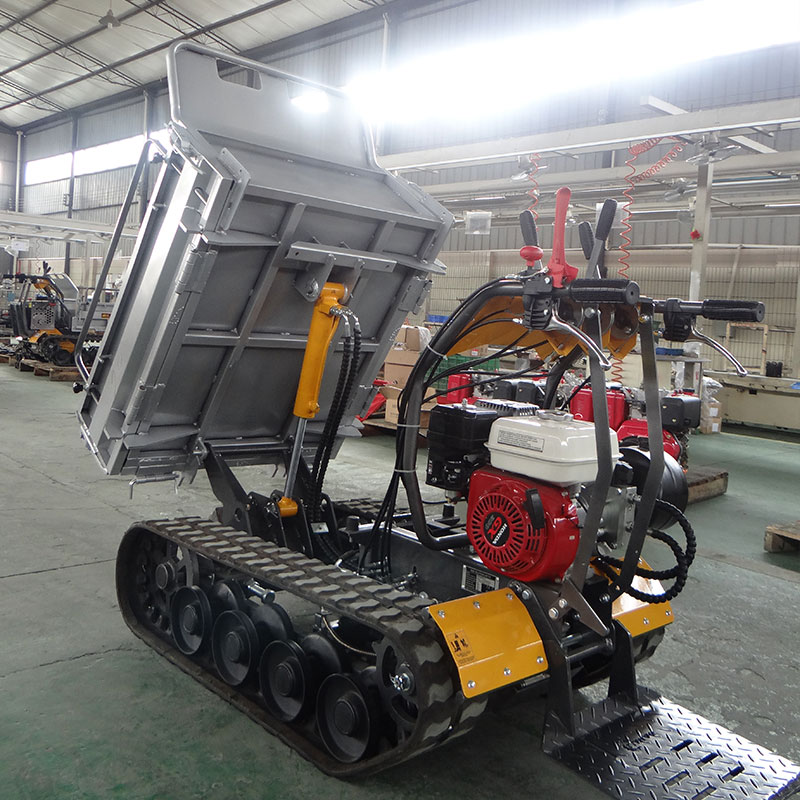

LG500B Mini Dumper
 |  |
 |  |
 |  |

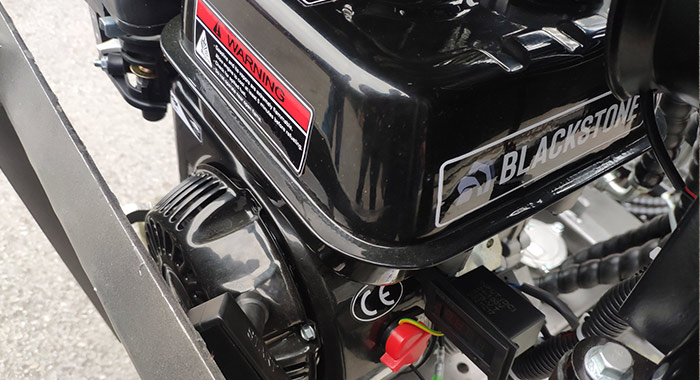

| Engine Model | GM170F |
| Engine Type | Single Cylinder, OHV, 4 Strokes, Air Cooling |
| Displacement (cc) | 208cc |
| Rated Power | 4.2 kw / 3600 rpm |
| Fuel Type | 92 # Gasoline |
| Fuel Consumption | ≤0.395 |
| Fuel Tank Capacity | 3.6L |
| Engine Oil Capacity | 0.6L |
| Total Weight | 320kg |
| Max Loading Weight | 500kg |
| Machine Size | 1730x900x1110mm |
| Cargo box Capacity | 380dm³ |
| Tipping Systme: | Hydraulic |
| Track Ground Length | 830mm |
| Track grage | 622mm |
| Track Width | 180mm |
| Tipping Angle | 42° |
| Walking Speed | 0-7.8km/h |
| Minimum Turning Radius | 1.15m |
| Minimum Ground Clearance | 100mm |
| Gearbox Oil Model | GL-4 |
| Gearbox Capacity | 2.5L |
| Hydraulic Oil Model | 46# Anti-wear Hydraulic Oil |
| Hydraulic Oil Tank Capacity | 5L |
| Climbing Ability | 20° |
1. Wide range of use, simple structure, smooth transmission, labor-saving operation, and easy to realize automatic control.
2. It is suitable for complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.
3. Large traction, good climbing performance and strong transportation capacity.
4. Small turning radius, flexible and flexible, especially suitable for narrow sites, reducing the cost of road construction.
