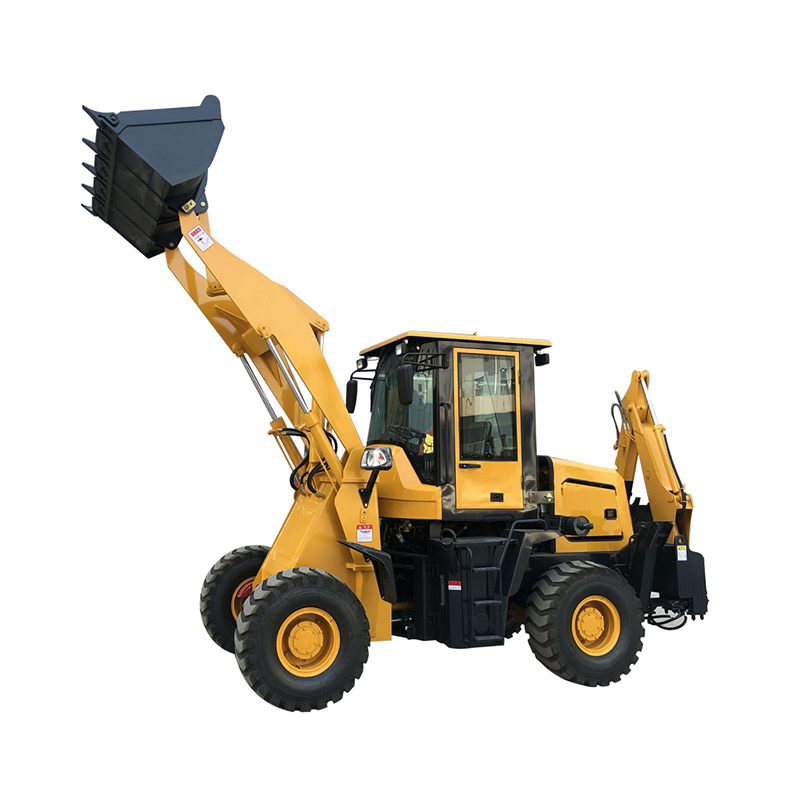

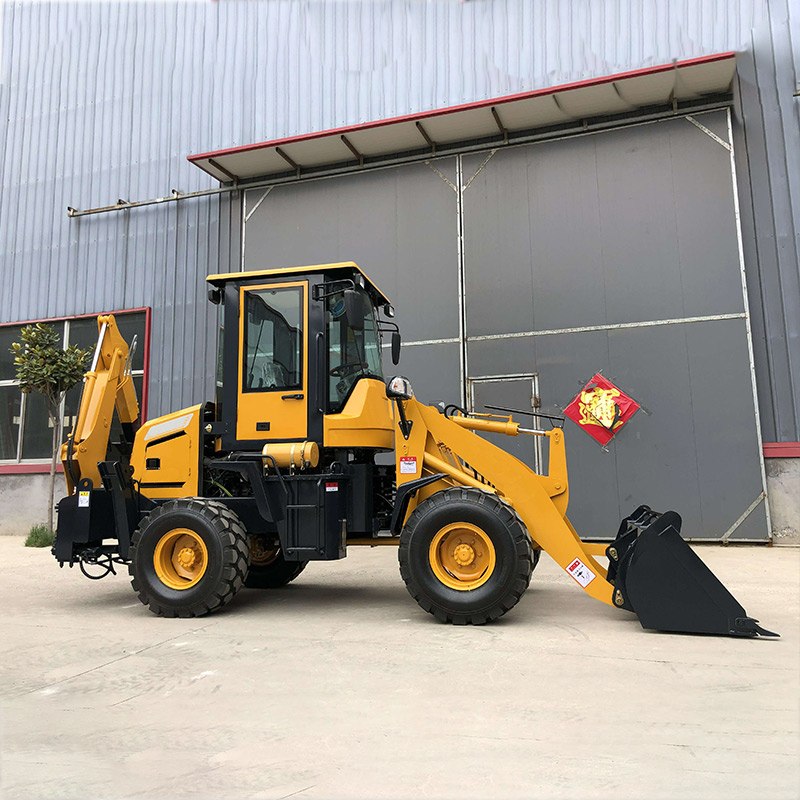

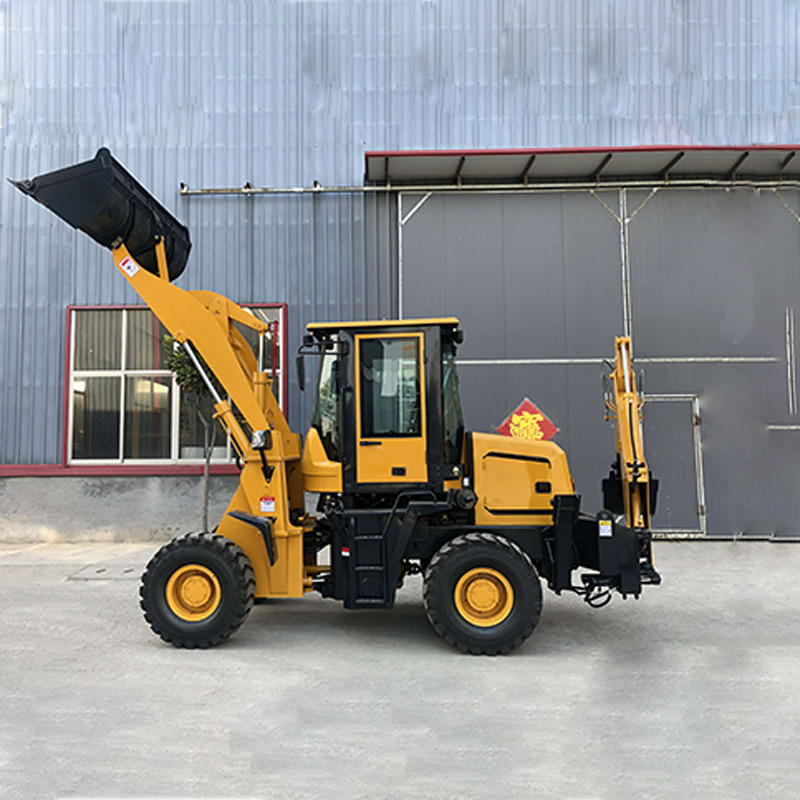

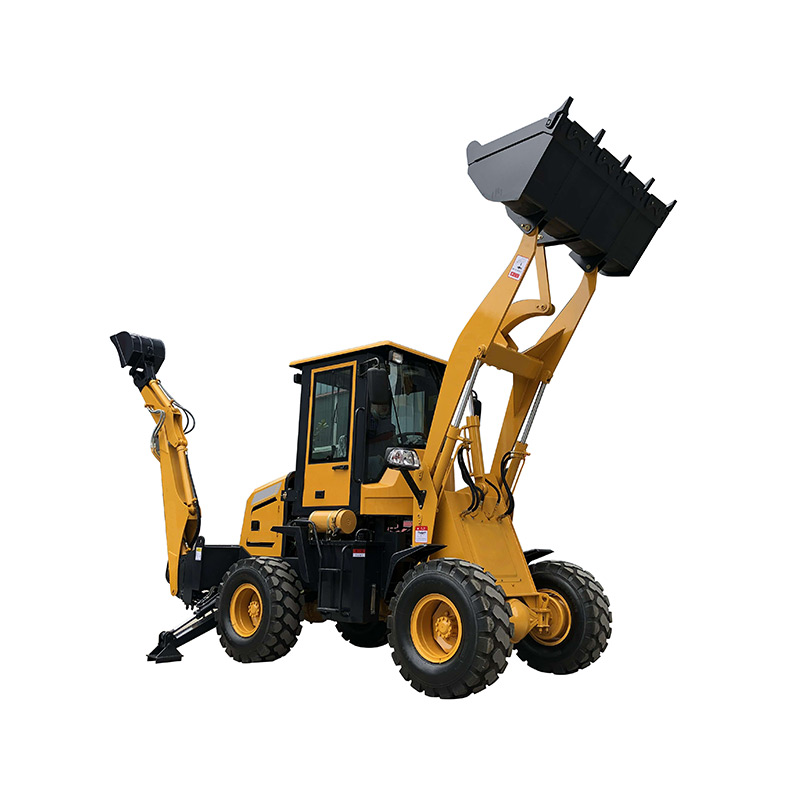

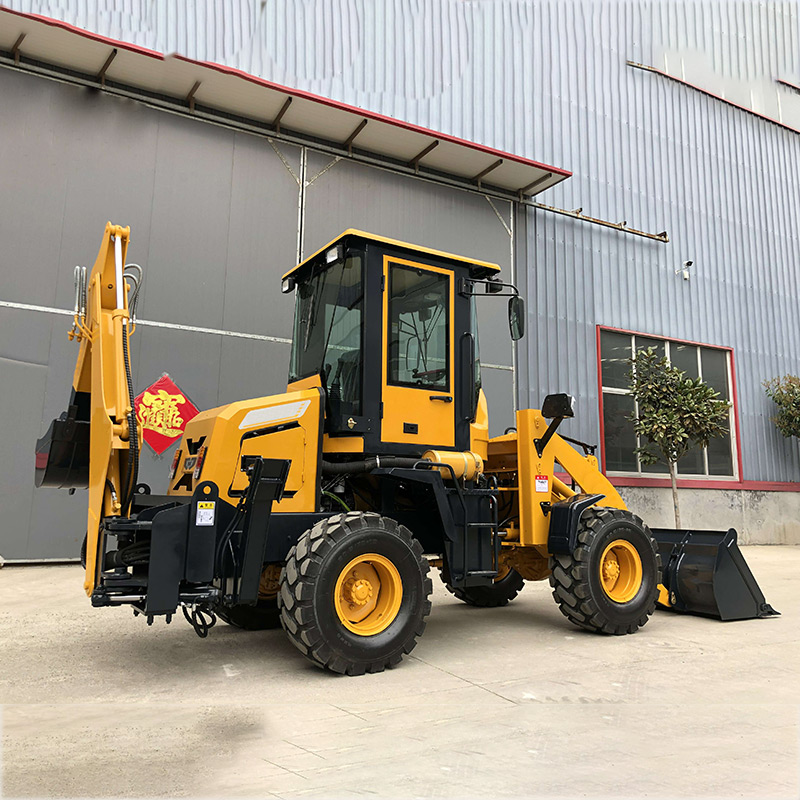

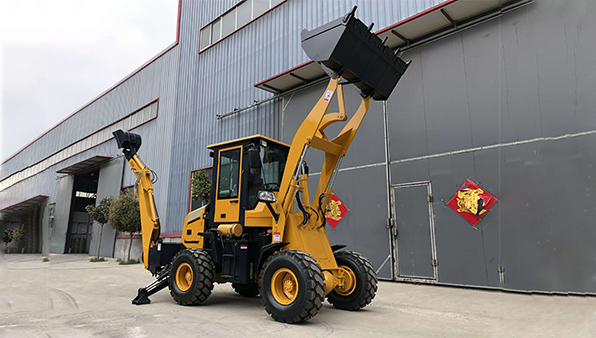

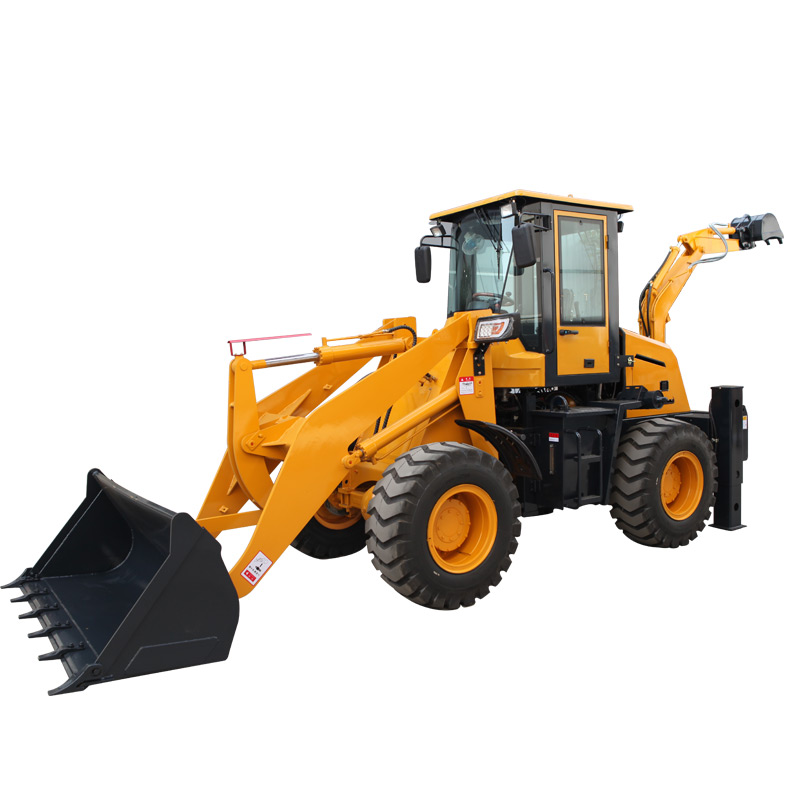

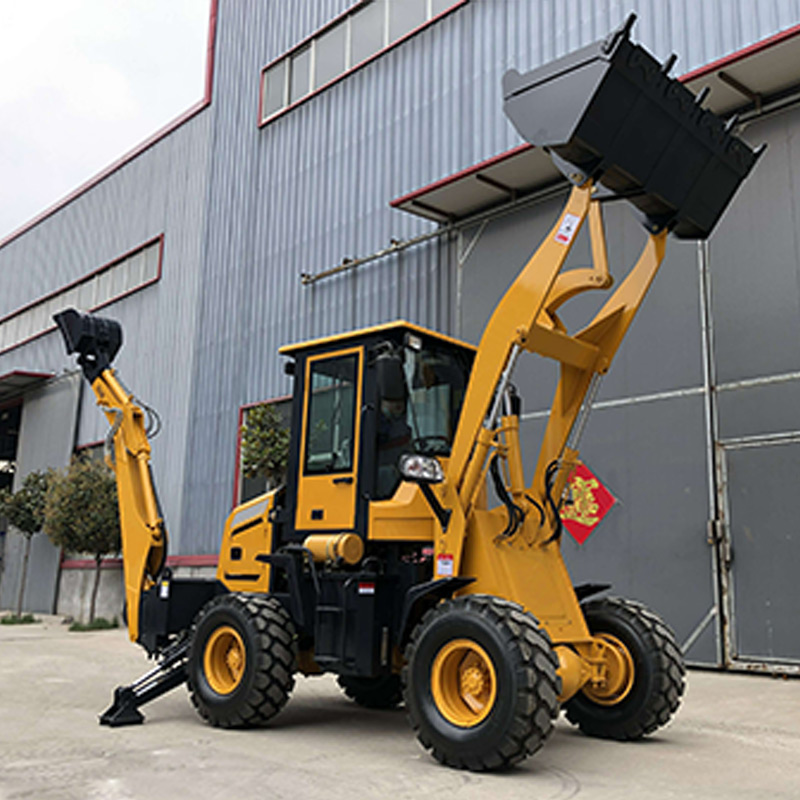

Backhoe Load - KVL70

The complete set of hydraulic systems are international well-known brands, no rust, no valve jamming, etc. regardless of wind, sun, rain, etc. At the same time, the products can be customized to meet the needs of different countries and customers. It can be applied to a variety of complex environment operations, whether it is mountains, hills, terraced fields, hard ground, paddy fields, it can be easily done.

Length：5600mm
Height：2750mm
Weight：4200kg
Engine Power：58KwW/80hp
Wheelbase：2315mm

Send Inquiry

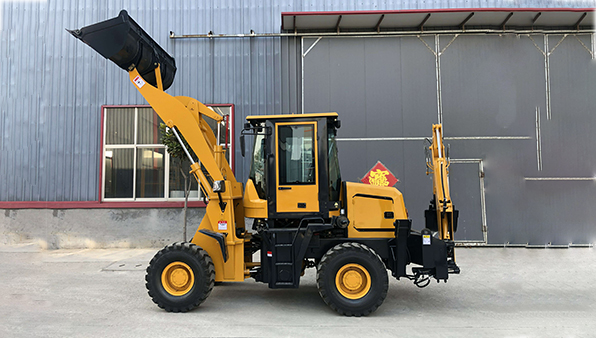

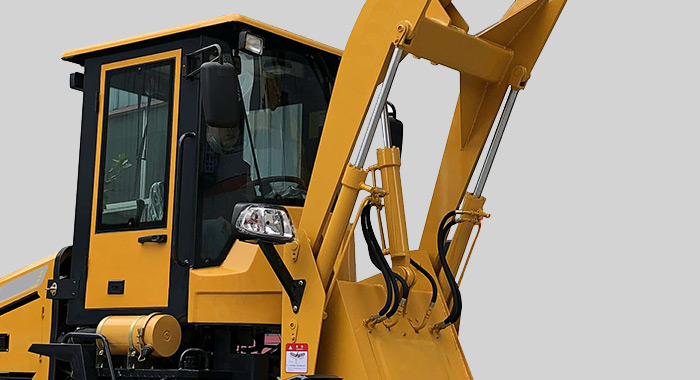

Cab Enlarged cab, safety glass, spacious and bright, movable seat, allowing you to facilitate the conversion operation of digging and loading, simple and flexible.

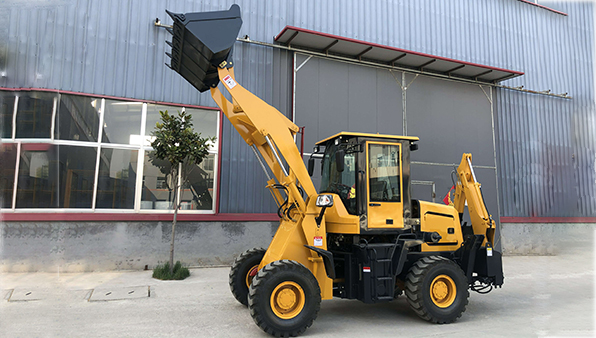

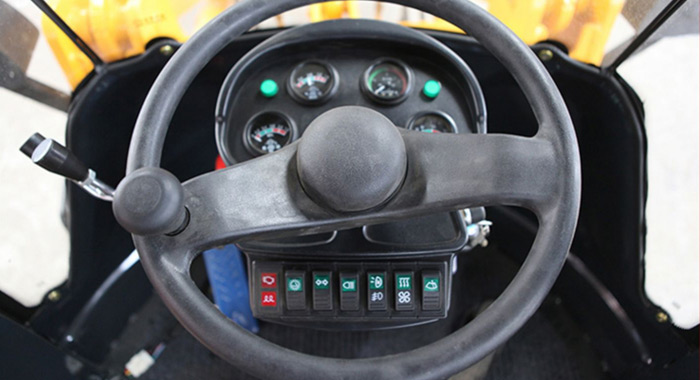

	Operation Handle The coherent compound action one-to-two operation handle is simple and easy to operate, fully meeting your needs!

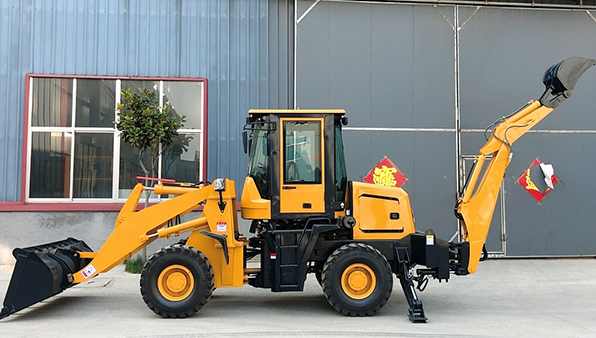

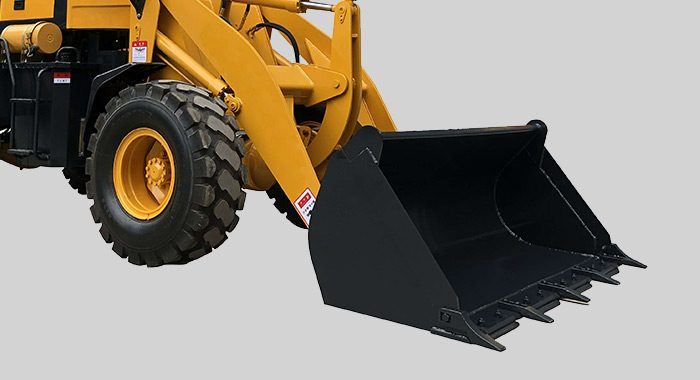

Load the Bucket It is used for filling and excavation of roadbed engineering, aggregate and charging of asphalt mixture and cement concrete yard. In addition, it can also carry out operations such as pushing soil, scraping the ground and pulling other machinery. Because the loader has the advantages of fast operation speed, high efficiency, good maneuverability, and easy operation, it has become one of the main types of earthwork construction in engineering construction.

Total length	5600mm	total height	2750mm	Vehicle width	1850mm
working weight	4200kg	hydraulic system pressure	19MPa	Maximum excavation height	4500mm
Bucket capacity	0.10m³	tire width	23.5-16	Excavator rotation angle	180°
wheel tread	1500mm	wheelbase	2315mm	Bucket maximum capacity	0.7m³
Minimum ground clearance	260mm	fastest walking speed	35km/h	Maximum grade	30°
engine power	58KwW/80hp	System pressure	16Mpa
